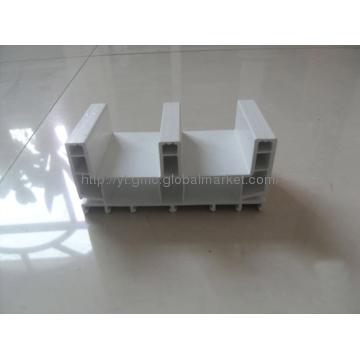

3 Tracks Sliding UPVC Profile

Key Specifications/Special Features:

1.Material: GB/T 19001-2008/ISO 9001:2008 certificate UPVC profile

2.Reinforcement: 1.2mm thickness steel liner insert the pvc profile

3.Design: sliding doors and windows

4.Hardware: Multi-point lock with transmission as well as the handle.

5.Profile color option:green,white,teak, zelkova, black walnut, laminated colors and wood grain or  as per  customized;

6.A:Finished product quality: the width or height of the window frame≤2000mm ,allow deviation±3mm ; the width or height of the window frame>2000mm ,allow deviation ± 3.5mm.

7.Single glass
Mid-hollow glass (5mm+9a+5mm)/(6mm+6a+6mm)
Laminated glass
Option: tempered/frosted/reflective/low-e/glass with geometric-bar/patterned glass

8.hardware system: Crescent lock for sliding window/Single point handles lock for casement window or as per requirement

9. Design:42mm series casement door

Advantage:

1) air-proof,water -proof,long life service,No distortion
2) sealing and acoustical insulation,
3) Low maintenance cost,fire-retarding feature,resist impacts,easy maintain
4) Beautiful appearance
